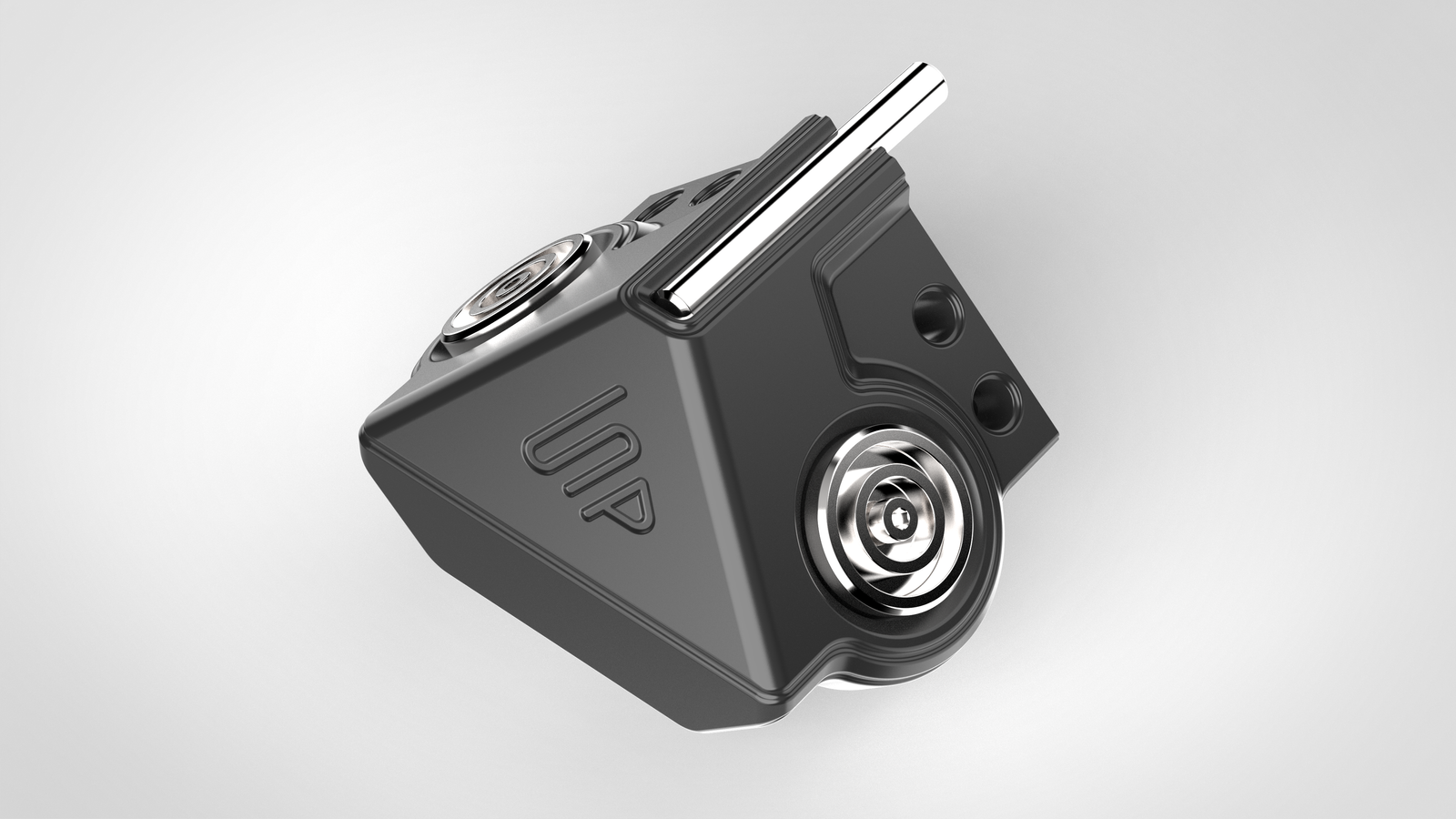

Nebula Dynamic Cutter Head
The Ultimate Upgrade for T560 Users
The Nebula is our best-selling cutter head and a direct drop-in replacement for the Vinyl Recorder T560 (Souri). Engineered for superior performance, it’s the cleanest and loudest dynamic head ever commercially produced—delivering unmatched clarity and output in its class.
Key Features:
-
Plug-and-Play T560 Replacement
Designed for a seamless upgrade from your existing T560 head. Maintains the same 8mm tube mount and 3-pin DIN connectors for a direct swap—no modifications needed. -
Superior Performance
Massive leap in audio fidelity, headroom, and durability. The Nebula sets a new standard for dynamic cutter heads at this level. -
RIAA-Ready Workflow
To achieve optimal results, the T560 preamp must be bypassed. We’ll provide a custom FabFilter Pro-Q3 RIAA encoding preset. A dedicated System Phonics preamp with integrated RIAA and expanded features is on the way. -
Precision-Built for Longevity
Features a solid cast brass stylus holder for extended life and durability. A professional stylus insertion tool is required—no improvised tools or shortcuts. -
DIY Lathe Compatibility
Also compatible with David’s Lockdown Project and similar DIY lathes. If using without the 8mm tube mount, just let us know when ordering—we’ll install the dual M4 rear thread mount instead. -
Optional Enhancements when using with other Lathes
Pair with our Fused Breakout Box and Stylus Heating System for enhanced performance and ease of use. When purchased together, we’ll pre-wire the head and install 3-pin DIN connectors for a clean, plug-and-play setup.
Specifications:
- Stylus: 340/320 Diamond/Sapphire
- Heater Terminals: Yes
- Preamplifer: Digitally via FabFilter ProQ3
- Frequency Range: 0hz – 20khz
- Max Long Term Cutting Level: +12db VU
- Protection: F800ma Quick Blow Fuses
- Impedance: 4 ohms Per Channel
- Recommended Amplifer: 400-450 watts @ 4 Ohm per channel Class A/B
- Weight: 270 grams

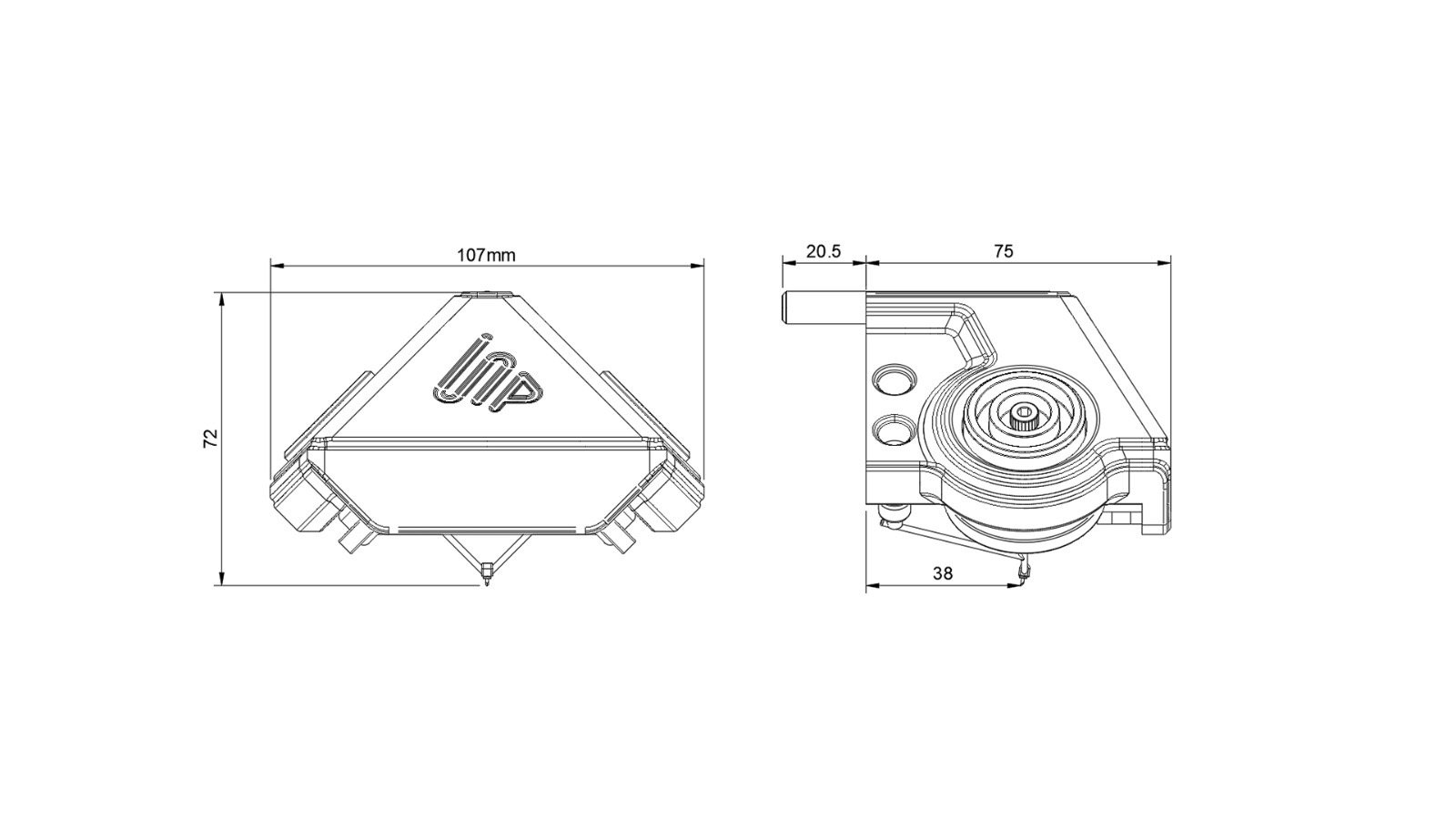

- Dimensions: See Drawing
