Mono “D” Cutter Head

Affordable Mono Cutting for Diamond & Lacquer Applications

The Mono “D” is a full-range mono cutter head designed for use with diamond (plastic) or sapphire (lacquer) cutting. Engineered for warmth, loudness, and reliability, it’s the ideal solution for vintage-style mono recordings—at a price that makes high-quality cutting accessible to all.

Key Features:

• “D” for Diamond
  Specifically designed for use with diamond styli and plastic blanks, but also fully compatible with sapphire and traditional lacquer cutting.

• Warm, Loud Mono Sound
  Perfect for period-correct vintage recordings and modern high fidelity recordings alike, offering greater loudness and fidelity than classic mono heads from the past.

• Built-In Fuse Protection
  Includes an integrated fuse for added protection and to help reduce system cost—no need for an external fuse box.

• Quick & Easy Setup
  Supplied with fixed wires, ready to connect to your amplifier and stylus heating system. Simple, no-hassle installation.

• RIAA-Ready Output
  Requires use of our included FabFilter Pro-Q3 RIAA encoding preset. A dedicated System Phonics preamp with built-in RIAA and other features is coming soon.

• Precision Stylus Mounting
  Like all our heads, this unit features a solid cast brass stylus holder. A professional stylus tool is required for proper insertion and long-term durability.

SPecifications:

• Stylus: 340/320 Diamond/Sapphire
• Heater Terminals: Yes
• Preamplifer: Digitally via FabFilter ProQ3
• Frequency Range: 0hz – 16khz
• Max Long Term Cutting Level: +8db VU
• Protection: F500ma Quick Blow Fuse
• Impedance: 8 ohms Single Channel
• Recommended Amplifer: 250-450 watts @ 8 Ohm Single channel Class A/B
• Weight: 240 grams

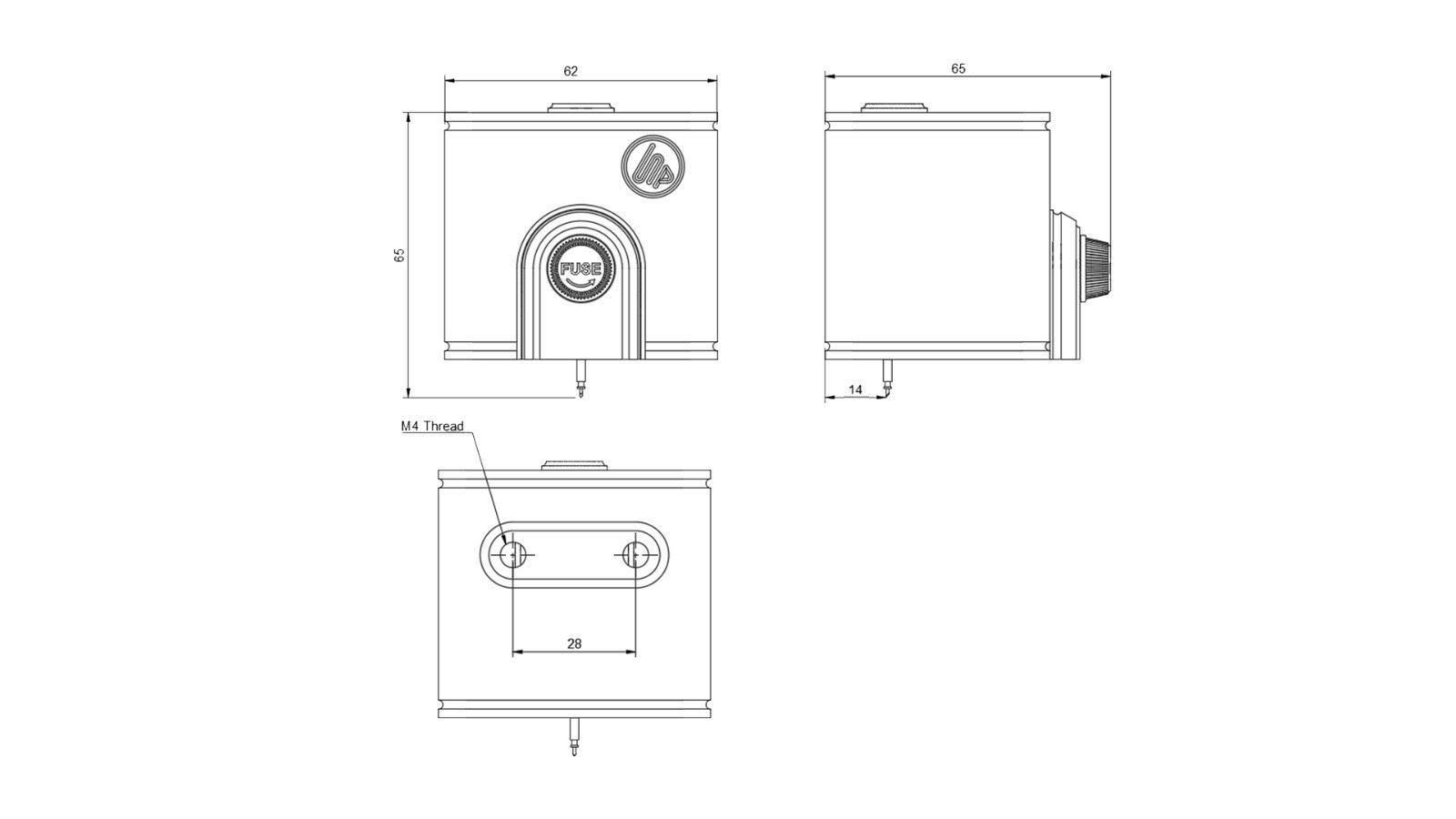

• Dimensions: See Drawing

Lead time: 2-3 weeks after payment

£1250.00 GBP plus shipping
